Where does the time go? I'd like to say that I'll do better about posting, but our Race for the Cure is October 17. That means that we start processing our teams next week and I'll be tied up with that for about 2 weeks.

In the meantime, Stephanie posted a comment recently asking questions about the wireless connection to my cricuts and requesting a picture. (Here's a LINK to my last post regarding wireless use of the cricuts.) I thought maybe several pictures would help others understand as well.

This is my basic setup. I tried to take one picture or stitch the two together, but it just was not happening with the allowable space I have behind my table. (Remember that you can click on the photo to open a larger view.)

Next is my lamp which sits on top of the hub (Belkin F5L009 Network USB Hub). Set up this way, the hub doesn't even take up any space.

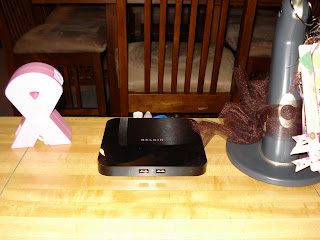

Here's the hub from the front with the lamp moved.

And the back of the hub.

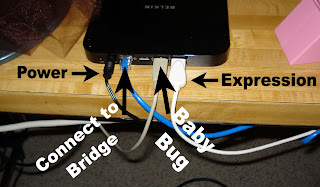

I thought maybe labeling the cords would help a little. The black one is the power cord for the hub; the blue one connects the hub to the bridge; the gray one is the USB cord to my baby bug; and the white one is the USB cord to my Expression.

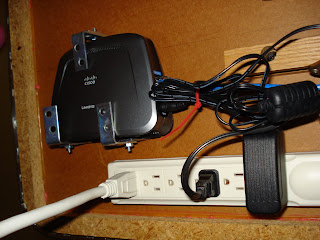

Remember that Dave attached my power strips and everything to the bottom of my table. This is the bridge (Linksys - Dual-Band Wireless-N Ethernet Bridge. Model: WET610N Best Buy SKU: 9213861) which is also attached under there. You can barely see the blue cord which attaches it to the hub.

This is our wireless internet router (ours is a Linksys) which sits on top of our entertainment center across the room. Dave also has another bridge two rooms over that controls all of his X10 equipment. I'm not sure what all he has connected to it.

On the ladder, you can see the router between the pictures of our respective families a few Christmas' ago.

From the floor, you don't even know it's up there.

To recap from the previous post, my laptop talks wirelessly to the router which talks wirelessly to the bridge. The bridge is attached to the hub and the hub is attached to the cricuts.

If you can only afford one piece at a time, you want the hub first and connect it directly to your internet with a cable.

I'm blessed not only with a wonderful husband, but one that is a computer tech and loves gadgets!

I hope that answers your questions. If not, please let me know.

I'll try to share a file or two with you before we start processing.
